Wall Mixer

Wall Mixer

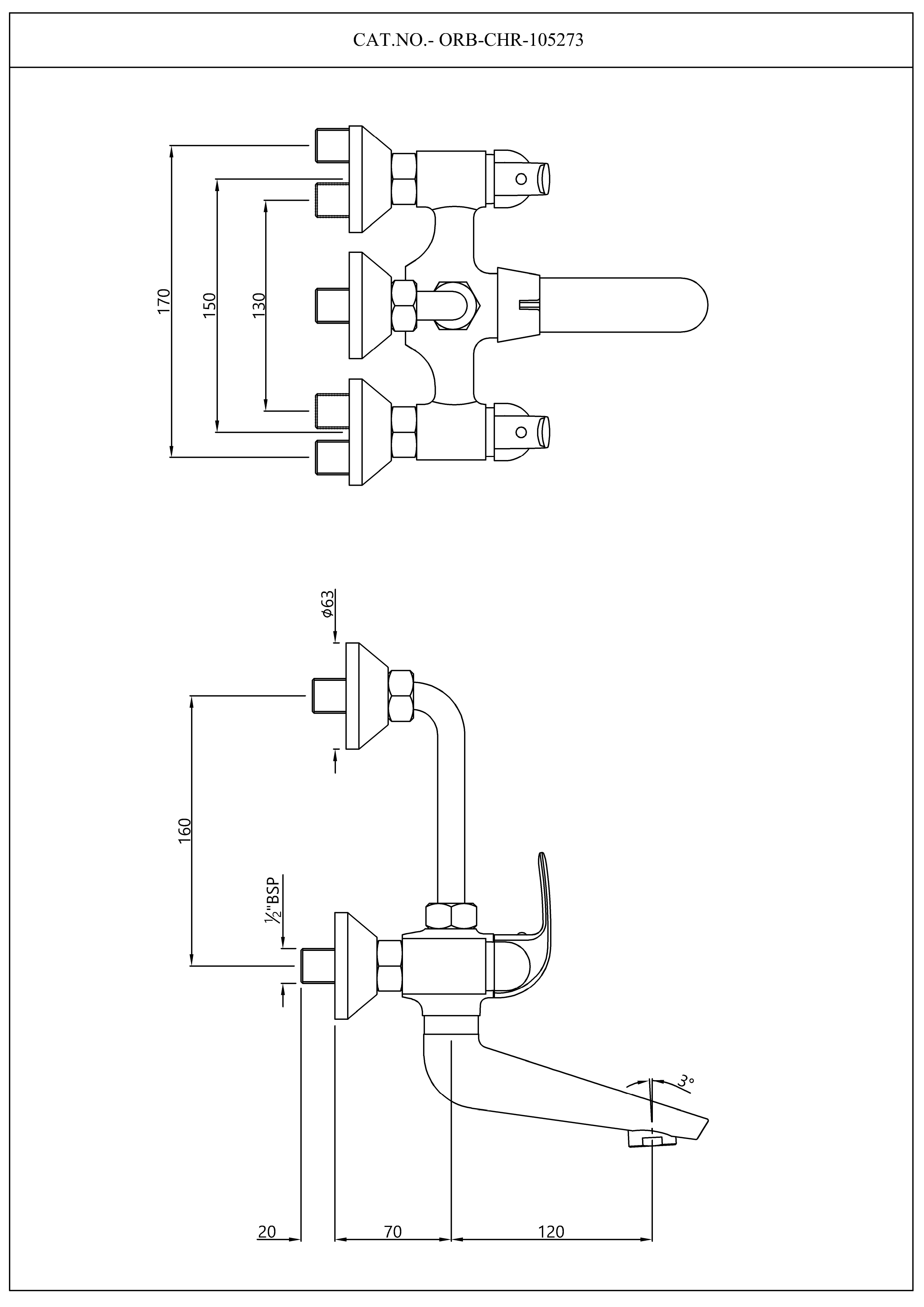

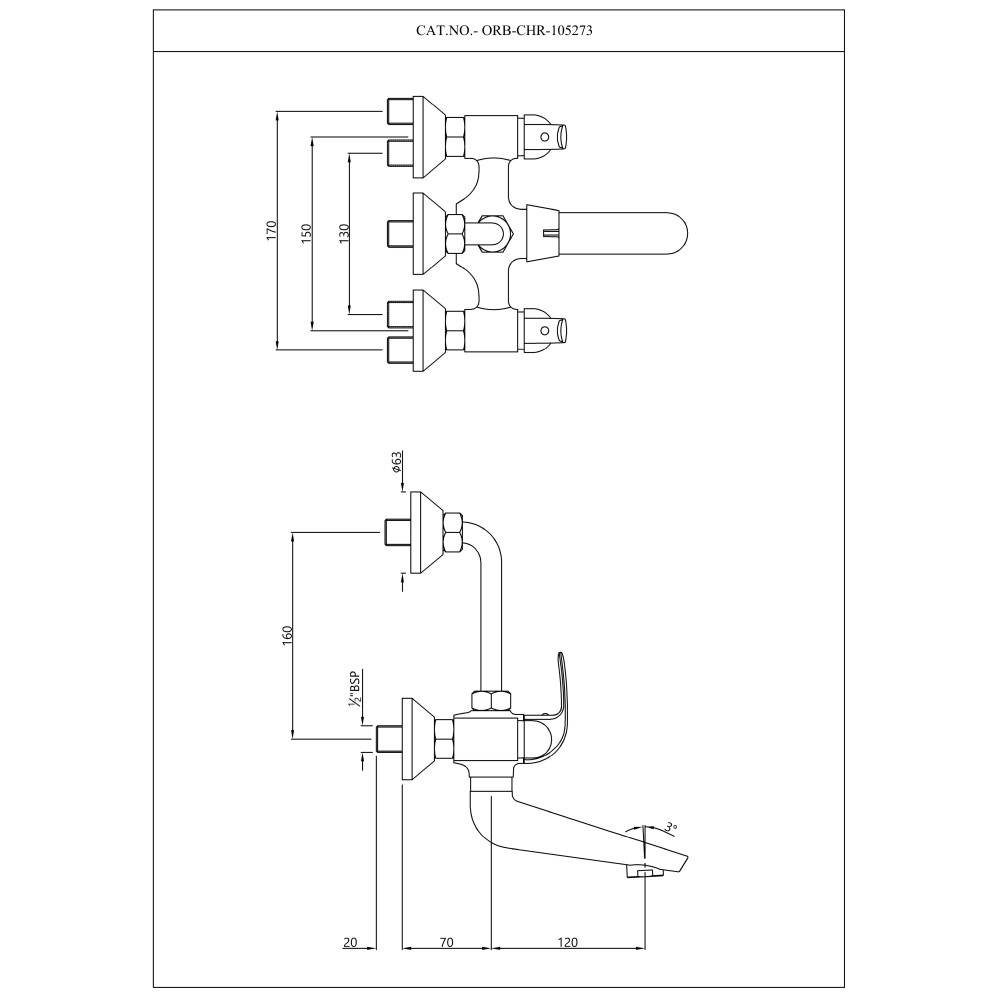

Product Code: ORB-CHR-105273
Range: Orbit
Bath and shower mixer with provision for Overhead shower with 115mm Long Bend Pipe on Upper Side
Request for price


Disclaimer:
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Catalogue may vary in reality
  • read more...

Design:

The Orbit is the new smart range of Essco comprising straight geometrical lines with a bold look that complement the minimalist and modern looks of your bathroom design.


Usage:

The 2-in-1 wall mixer is ideally used in the bathing area for diverting water between the overhead shower and spout, mixing hot and cold water at the desired water temperature.


Features:

APPLICATION

- Designed for temperature-controlled water discharge with a twist move (quarter-turn operation)

- Ergonomic in design for smooth operation and durability.

- Diverts water to any two different modes of your choice (overhead shower/bucket filling spout)

- Mix Hot and Cold water using respective levers

- Complete range with matching design available


MATERIAL:-

- Extruded brass made spindle and housing of cartridge for long life, durability and trouble-free performance forever

- Chrome-plated durable Brass flange enhance the aesthetic appeal and support in proper installation with more durability

- Aerator for splash-free foam flow made up of food-grade plastic. This is designed to work from + 5 degrees to + 65 degrees effectively

- All metal parts are repairable as they prepared and assembled in-house with Essco production facilities

- 100% quality test at every stage of production

- Essco offers food-grade silicone grease around all metal and rubber parts for smooth functioning.

- Availability of the spare parts even after the warranty period

-  Higher thickness of the ceramic disc provides smooth movement  and  withstand for the pressure testing  up to 6 bars of air and 12 bars of water

- ESSCO quarter turns comes with a very unique style i.e. plastic cap on the spindle, it helps in avoiding Metal to Metal contact between the spindle and the knob. Second, it develops a better grip that doesn't require any maintenance or repair in a short span of time

- It’s again a time tested product for its durability  and long-life performance

- This designed to work effectively from 5 degrees to 65 degrees without any performance failure. Thus make our product confirms to tough weather, water and handling conditions

- Chrome-plated durable and reliable brass body
